Accessories

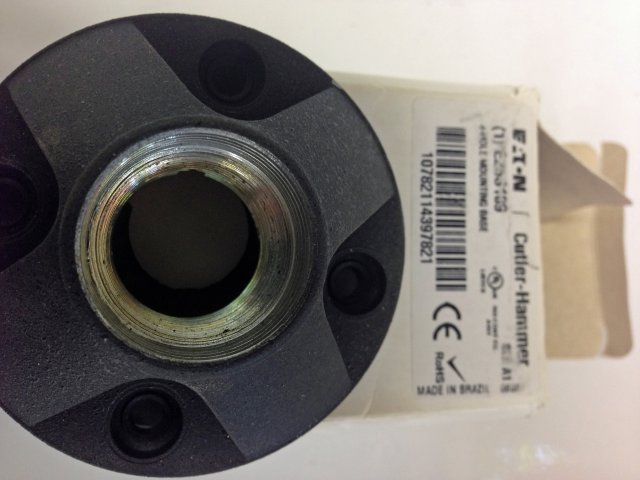

Eaton Cutler Hammer 4 Hole Stack Light Mounting Base

Eaton Cutler Hammer 4 Hole Stack Light Mounting Base
PN: E26S109............... $15.00
* ¾”NPT Threads

Cables

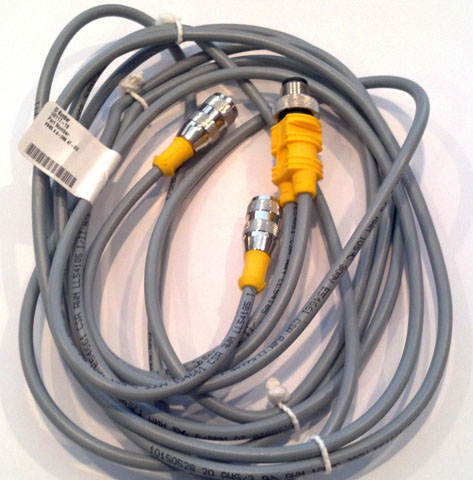

Turck Branch Molded Splitter

Pn: VBRS 4.4RK4T 2/2……..$24.00
One 4- pin Male M12 connector, Two; 4-pin female M12 connectors
2 meter cables
250 VAC/ 300 VDC
4.0 A
3/20 ga, grey PVC
5.2 mm OD
Rated: IP67

Capacitive Proximity Sensors

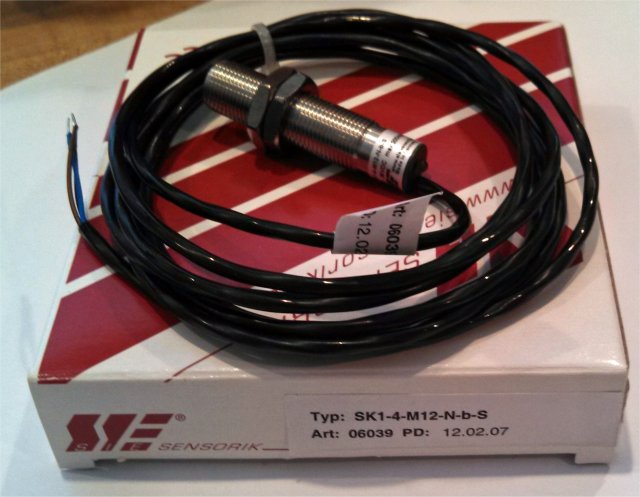

SIE-Sensorik capacitive proximity switch

PN: SK1-4-M12-N-b-S ………. $35.00
12mm Diameter Tubular
1…4 mm adjustable sensing range
Flush mount
3 wire, NPN normally open output
12-36 volts DC
2 meter PUR cabled connection

Current Transformers

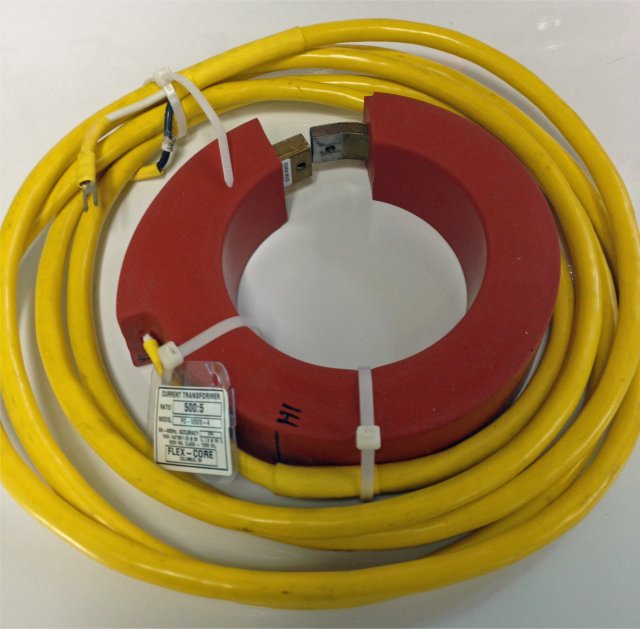

Flex-core Split Core Current Transformer

P/N: FC-500/5-4 …………………….. $260.00
Ratio: 500amps : 5 amps
Cable length: 12ft
Hole size: 4"
Installed simply by flexing the core around the
conductor.
Insulation level: 600VAC
Frequency: 50 - 400Hz

Electrical Contactors

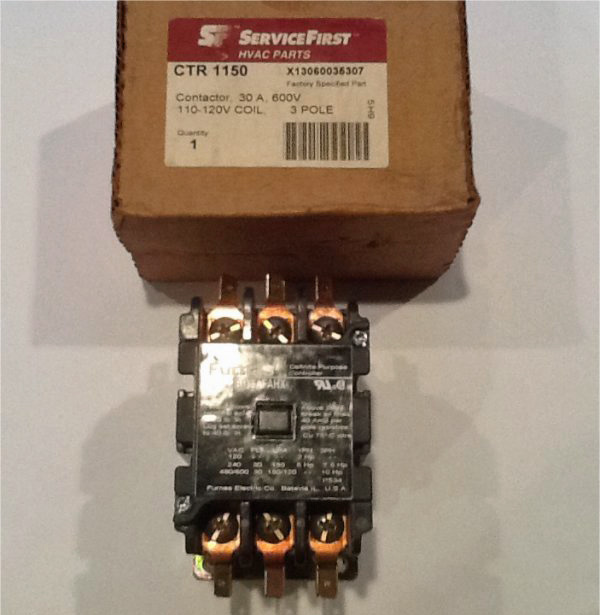

Service First DP Contactor (Trane)

PN: CTR 1150……….. $39.95
3 Pole Contactor
30 Amp 600 volt
120 Volt ac Coil

Photo Sensors

Banner Econo-Beam Emitter

PN: SE61EMHSQDP ………. $67.00
Supply voltage: 10-30 Volts DC
Sensing Range: 1.5 Meters

Banner Omni-Beam power block

PN: OPBT2QDH ………. $54.00
Supply: 10-30 Volts DC
Outputs: NPN or PNP (100mA max.)
4 Pin M12 Minifast Quick Disconnect

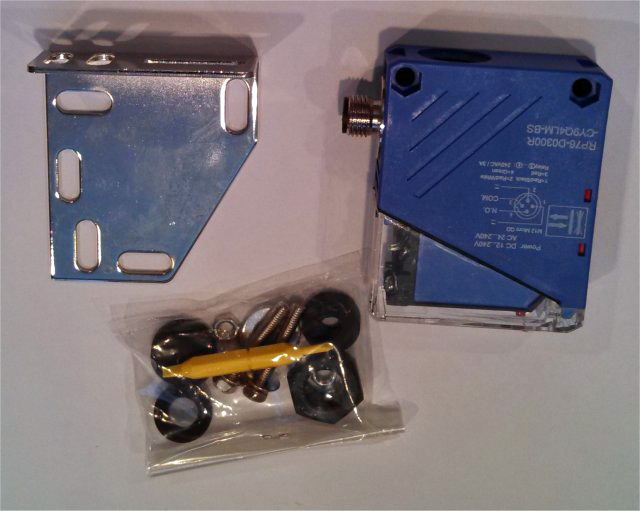

HTM Long Range Diffuse photoelectric sensor with background suppression

PN: RP76-D0300R-CY94LM-BS ………. $50.25
Back or bottom mounting option
Sensing Range 0.3m (11.8”)
Power: 12…240 Volts DC or 24…240 Volts AC
Relay output
4 pin M12 Quick Disconnect

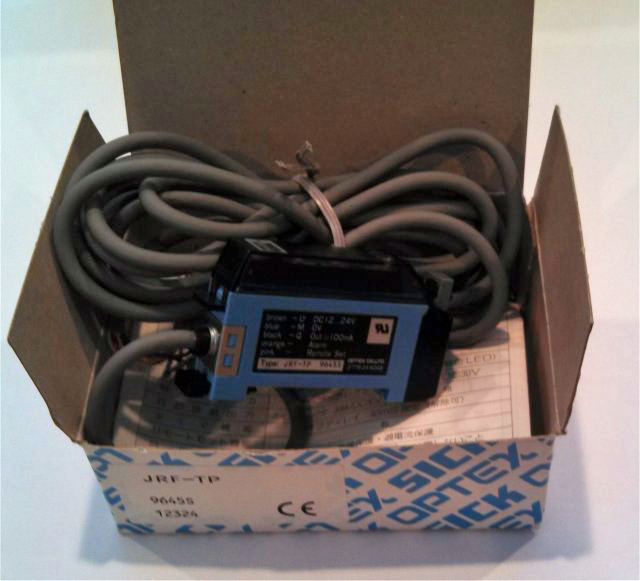

Sick Fiber Optic Amplifier

PN: JRF-TN ………. $83.25
Supply Voltage: 12-24 Volts DC
Control Output: NPN
Response Time: 300us/600us adjustable
Construction: IP66
Sensitivity adjustment: Pushbutton to teach
Light source: Visible Red

Banner Mini Beam retro-reflective sensor

PN: SM312LVQD ……………. $44.95
18 mm threaded lens & side mount
Visible red led light source
Range: 5 meters
Bipolar NPN/PNP output
Voltage: 10-30 Volts DC
4 pin Euro Quick Disconnect

Load Cells

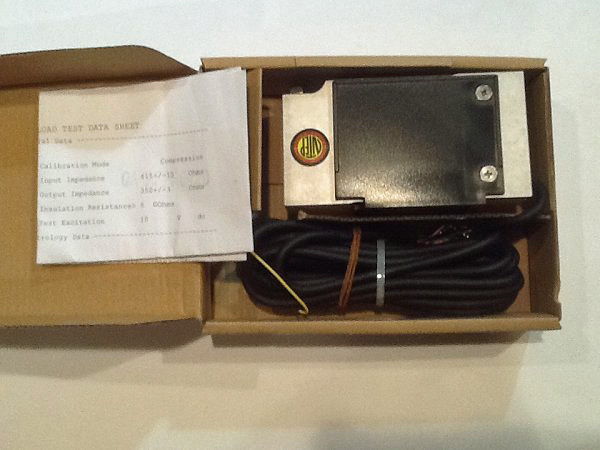

Tedea Single Point Load Cell

PN: 1010-I-5kg …………….. $110.00
SN: 11289863
5kg capacity
condition new

Link to data sheet

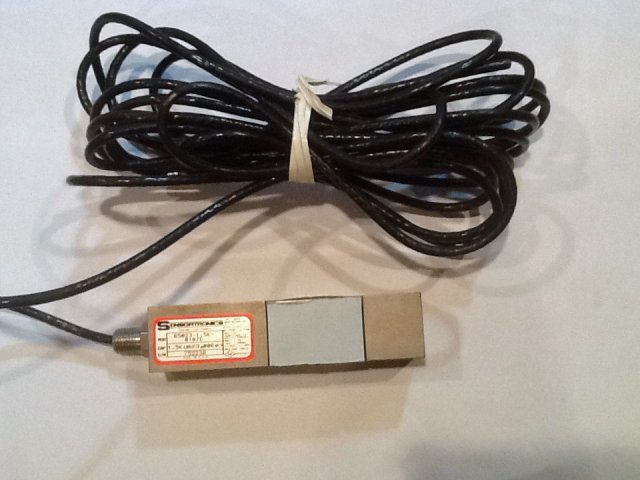

Sensortronics Shear Beam Load Cell

PN: 65023-1.5K-0107C ……$275.00
SN: 752238
Capacity: 1500 Lbs.
FM Approved: Class I, II, III Div. 2 Grp. A-G
condition new


Link to data sheet

Moisture Sensors

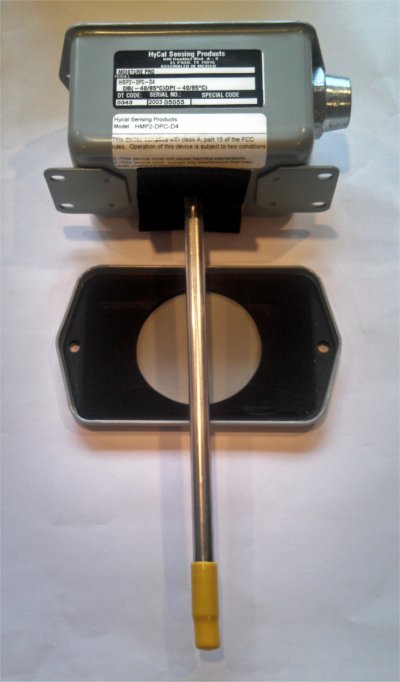

Hycal Duct Mount dew point & dry bulb transmitter

PN: HMP2-DPC-D4 ……. $250.00
3 wire transmitter
Dew point -40 to 185 deg. F.
Accuracy +/- 1.8 deg. F.
Output 4-20mA
Supply Voltage 24 volts DC
Probe length 9” Diameter 0.38”
NEMA 4 Protection

Pressure Gauges

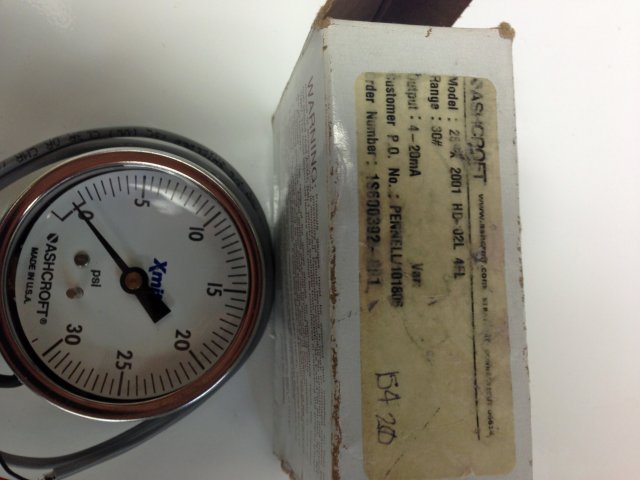

Ashcroft Pressure transmitter/gauge

PN: 25x2001HD02L4FL 30#.... $80.00

Supply… 12-30Vdc
Output … 4-20mA
Range… 0-30PSI

Pressure Transmitters

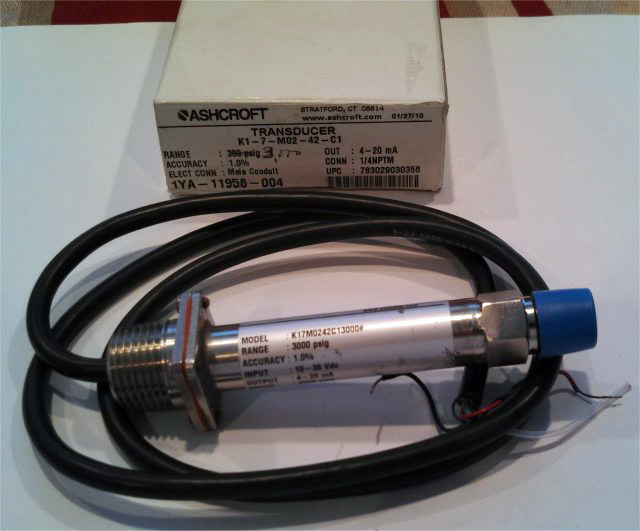

Ashcroft K-1 Pressure Transmitter

PN: K17M0242C13000# ……………. $150.00
Repeatability: 0.7%
Range: 3000psig
Input: 10-36 Volts DC
Output: 4-20mA
Proof pressure: 4500 psig
Connection: ¼ NPT male

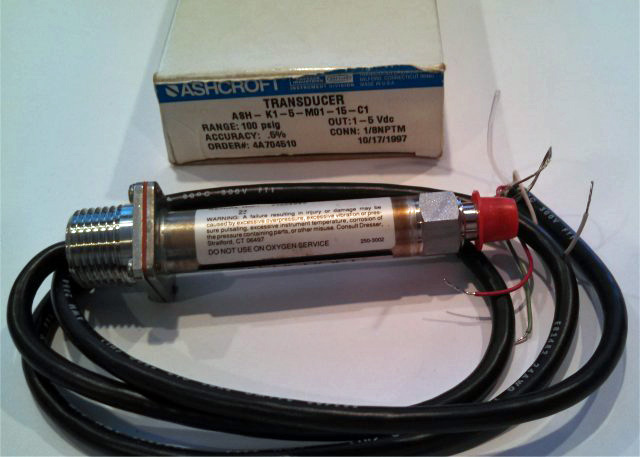

Ashcroft K1 Pressure Transmitter

PN: K1-5-M01-15-C1-100 ………. $150.00
Accuracy: 0.50%
Pressure Connection: 1/8 NPT male
Output: 1-5 Volts DC
Input: 10- 30 Volts DC
Electrical termination: ½ NPT male with 36” cable
Range: 0-100 psig
Proof pressure: 200 psig

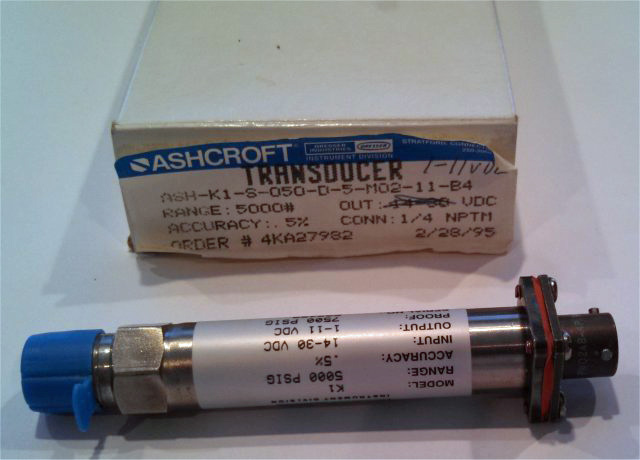

Ashcroft K1-S Pressure Transmitter

PN: K1-S-050-D-5-M02-11-B4 ………. $150.00
Accuracy: 0.50%
Pressure Connection: ¼ NPT male
Output: 1-11 Volts DC
Input: 14-30 Volts DC
Electrical Termination: Bendix 4 pin twist lock
Range: 0-5000 psig
Proof Pressure: 7500 psig

Ashcroft K1-S Pressure Transmitter

PN: K1-S-050-D-5-M02-15-B8 #3000 ………. $354.95
Accuracy: 0.50%
Pressure Connection: ¼ NPT male
Output: 1-11 Volts DC
Input: 14-30 Volts DC
Electrical Termination: Bendix 4 pin twist lock
Range: 0-5000 psig
Proof Pressure: 7500 psig

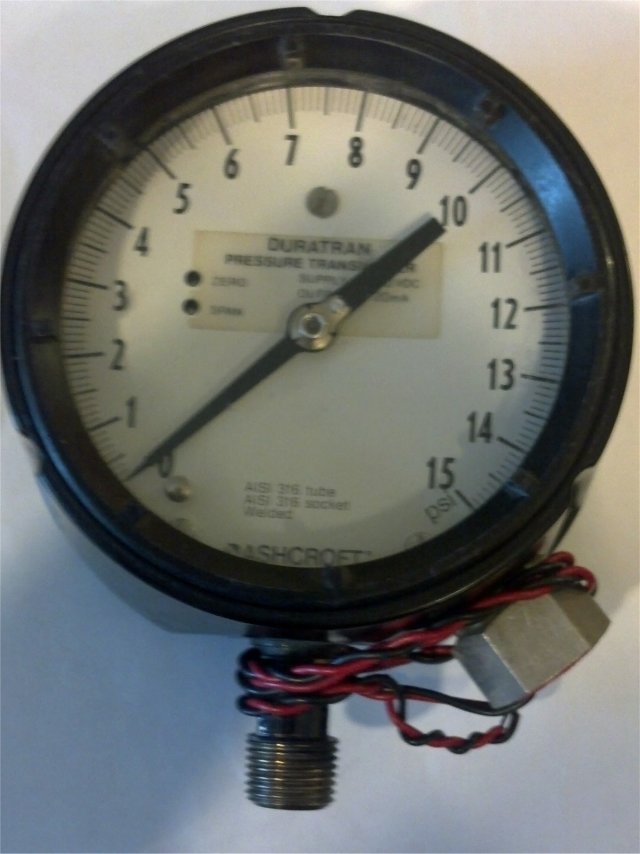

Ashcroft Duratran Transmitter

PN: 45 2279 SSH 04L 15# $50.00
Pressure Range: 15 psi
4-20mA output
12/40Vdc supply
½ NPT connection
4.5” face, phenolic case
Link to DATA Sheet

Timers

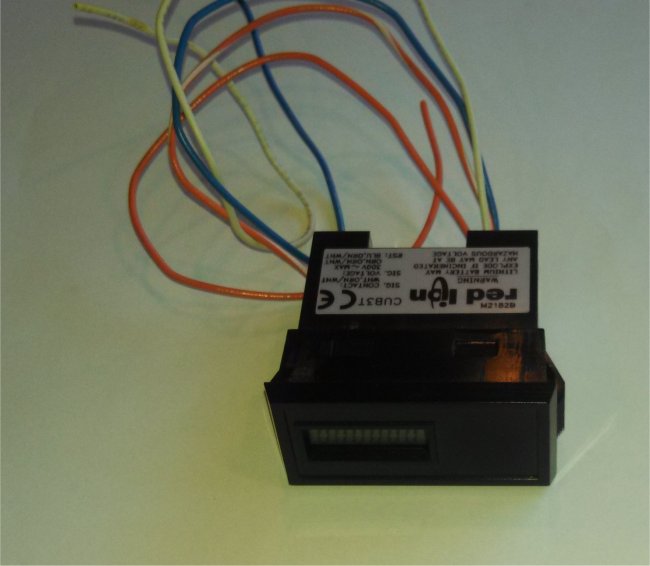

General Purpose Miniature Electronic Timer -

Model CUB3T3.........$32.50
6-DIGIT TIMER ACCUMULATES TIME IN 1/10 HOURS,
OPERATES FROM EITHER SWITCH CONTACT, OR
10 to 300 V (AC 50/60 Hz or DC) INPUTS
SELF-POWERED WITH INTERNAL LITHIUM BATTERY FOR UP TO 7 YEARS OF CONTINUOUS OPERATION
REMOTE RESET ONLY MODEL
EASY SNAP-IN MOUNTING IN 1" X 2" (25 mm x 50 mm) PANEL
OPENING
IDEAL FOR PORTABLE, MOBILE, OR STATIONARY INDUSTRIAL

Ultrasonic Sensors

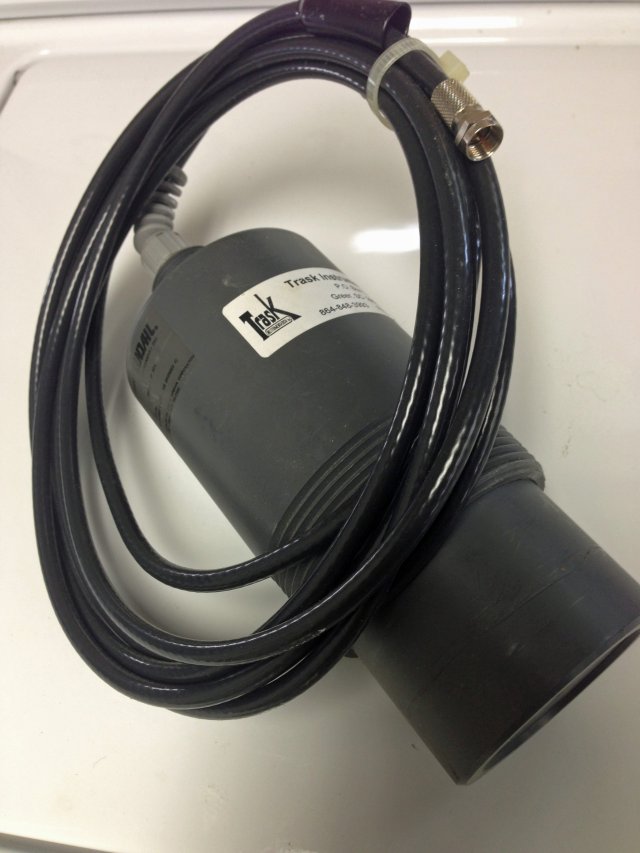

Lundahl Ultrasonic Level Sensor

PN: DST 1002.................. $100.00
Operating range 1.5 to 35 Feet
NEMA 4X Enclosure
Temperature range -30 to 70 degrees C.
Supply voltage & sensor adjustments through controller


Link to data sheet

Vibration Switch

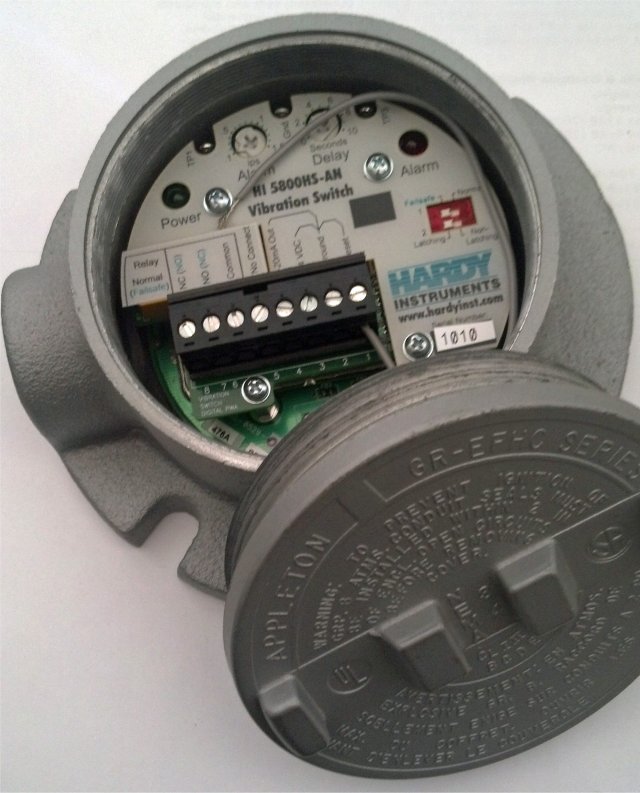

Hardy Vibration Switch - .....$475.00



Link to data sheet
